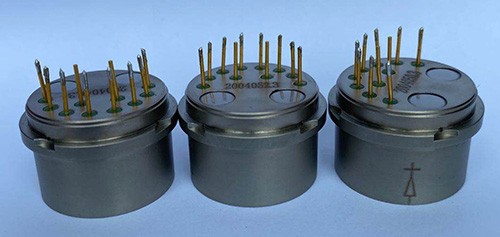

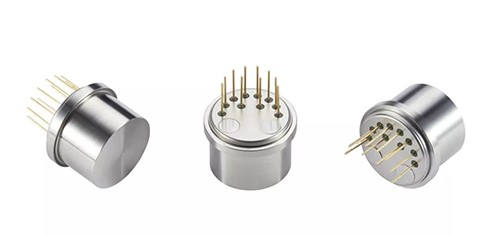

SNQ4 high-temperature Quartz flexible accelerometer with supreme anti-vibration performance. They are widely used in measurement while drilling or logging while drilling, MWD/LWD, the 150℃/180℃ all are chosen by users’ design, it is cost-effective oil and gas accelerometer.
|
|
Item |
01 |
02 |
|
1 |
Range (g) |
≧15 |
≧15 |
|
2 |
Bias k0/k1(mg) |
≤6 |
≤6 |
|
3 |
Scale factor k1(mA/g) |
1.5±0.5 |
1.5±0.5 |
|
4 |
0g 2 hours stability(μg) |
≤40 |
≤40 |
|
5 |
1g 2 hours stability(ppm) |
≤40 |
≤40 |
|
6 |
Bias thermal coefficient(μg /℃) |
≤±60 |
≤±60 |
|
7 |
Scale factor thermal coefficient(ppm/℃) |
≤±120 |
≤±80 |
|
8 |
Vibration |
20g, 20-2000Hz |
20g, 20-2000Hz |
|
9 |
Impact |
1000g, 0.5ms, 1/2sin |
1000g, 0.5ms, 1/2sin |
|
10 |
Working temperature(℃) |
-45℃~+180℃ |
-45℃~+150℃ |
|
11 |
Working voltage range(mA) |
±12~±18 |
±12~±18 |
|
12 |
Working current(mA) |
≤±20 |
≤±20 |
|
13 |
Size(mm) |
φ25x18.4 |
φ25x18.4 |
|
14 |
Weight(g) |
≤70 |
≤70 |
